YETI SB120 T-Series – Frame – Raw Carbon
R89,995
: R99,995
Save 10%
Save 10%
Remote Warehouse: Processing in 3-5 working days
Please Contact us for pricing on custom builds
MORE BALANCED AT SPEED.
Its nimble reach darts through singletrack. Its steep seat tube angle makes light work of climbs. Its head angle and balanced vertical suspension travel prioritize downhill fun, making it an incredible Trans-Cascadia style race whip. Point is, the SB120’s geometry is so balanced and agile, forgetting how much travel it has on the way up and down is totally possible.
1
A REACH FOR AGILITY
A more neutral position keeps riders weighting both wheels more evenly with a modern reach for agility, keeping things spritely.
2

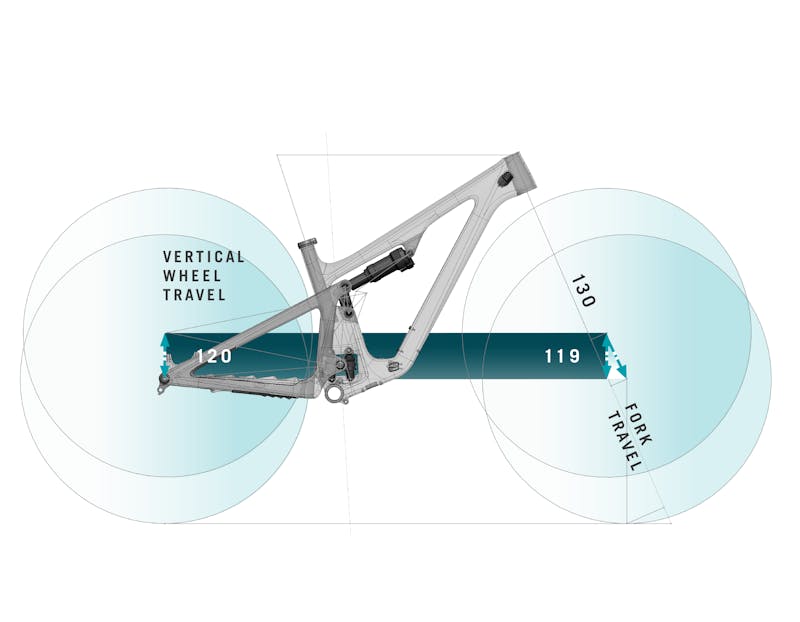

BALANCED VERTICAL TRAVEL
Modern head angles are slack, so we run more front travel than rear travel to balance the bike. This delivers a brilliantly balanced ride.
3

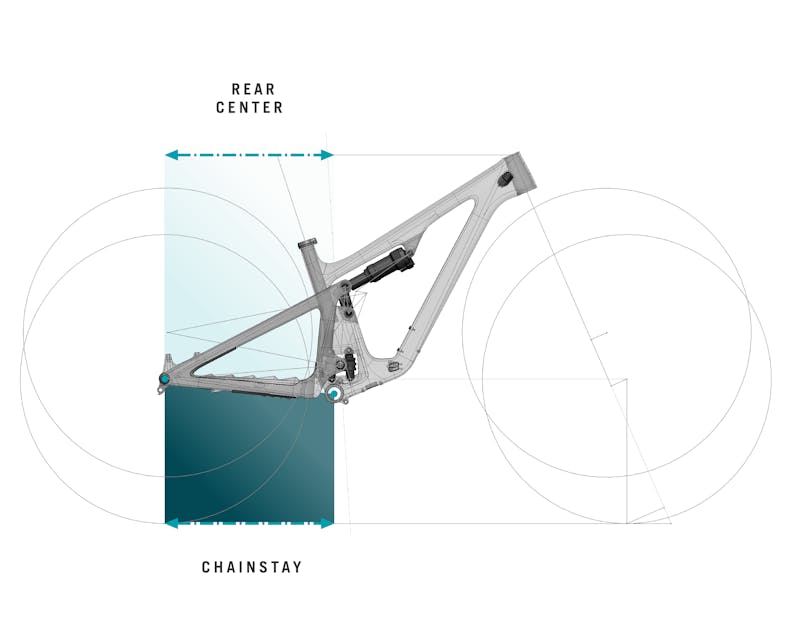

SIZE SPECIFIC CHAIN STAYS
Chain stay length increases with frame size, ensuring the rear center of the bike is proportionately correct for riders of all sizes (XS-XXL).
4
SIZE SPECIFIC SEAT TUBE ANGLES
Riders of all sizes stay in a powerful pedal position with seat tube angles that increase with frame size. This makes the transition from seated to standing easier, especially for taller riders.
Geometry
in mm
| XS | SM | MD | LG | XL | XXL | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 13.6 | 14.4 | 15.7 | 17.3 | 18.5 | 19.1 |
| B | EFFECTIVE TOPTUBE LENGTH | 21.3 | 22.5 | 23.7 | 24.6 | 25.7 | 26.5 |
| C | HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| E | ACTUAL SEAT TUBE ANGLE | 71.1 | 71.5 | 71.9 | 72.3 | 72.7 | 73.2 |
| F | CHAINSTAY LENGTH | 17 | 17.1 | 17.2 | 17.3 | 17.4 | 17.4 |
| G | WHEELBASE | 44.2 | 45.5 | 46.9 | 47.9 | 49.2 | 50.2 |
| H | ESTIMATED BB HEIGHT | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| I | STANDOVER | 27.8 | 27.9 | 28.1 | 28.3 | 28.3 | 28.5 |
| J | HEADTUBE LENGTH | 3.6 | 3.9 | 4.1 | 4.5 | 4.9 | 5.8 |
| K | FORK AXLE TO CROWN | 21.4 | 21.4 | 21.4 | 21.4 | 21.4 | 21.4 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 23.8 | 24.0 | 24.2 | 24.6 | 25.0 | 25.8 |
| N | REACH | 15.6 | 16.7 | 17.9 | 18.7 | 19.7 | 20.3 |
| O | FRONT CENTER | 27.1 | 28.4 | 29.7 | 30.6 | 31.8 | 32.7 |
| P | VERTICAL FORK TRAVEL | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 | 4.7 |
Fit Guide
-
x-small4’10” – 5’3”
-
Small5’1” – 5’7”
-
Medium5’5” – 5’11”
-
Large5’10” – 6’3”
-
x-large6’1” – 6’7”
-
xx-large6’5” – 6’11”
