With the Rapid Red 5 DB wheelset by Fulcrum for 28″ tyres, you will no longer be stopped by bad road surfaces or gravel passages. Designed specifically for use on 28″ gravel bikes, it lets you experience new adventures off the beaten track every day.

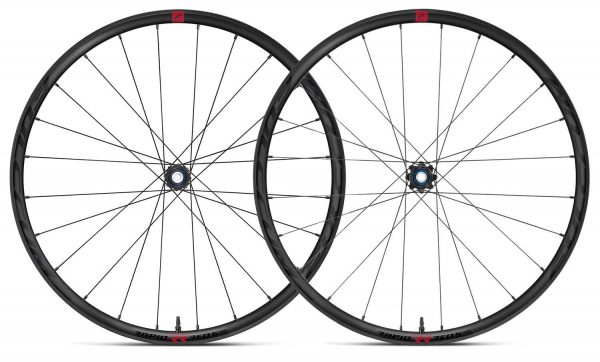

Ready for your gravel adventure: the Rapid Red 5 DB 28″ wheelset from Fulcrum
In the development of the Rapid Red 5 DB, Fulcrum has brought together all the experience and technical know-how gained in the production of wheels for road bikes, and designed a model for surfaces other than asphalt. Unpaved roads, trails and dirt tracks require a wider inner channel – in this case 23 mm – with a low, extremely resistant 24 mm rim to absorb shocks and provide excellent riding comfort, whatever the stresses to which it is subjected. The tread pattern of the wheel allows the fitting of tyres between 30 and 46 mm with a wide range of settings that can be adjusted according to the type of road you ride on. The 24 straight-head spokes are supported by a solid aluminium hub, ideal for rough terrain and for the slightly higher weight of a touring bike. Get ready for your next journey: Your Rapid Red 5 DB wheels will be your loyal companion: comfortable and reliable, light and precise.
Features – Fulcrum Rapid Red 5 DB
- Solid aluminium wheelset for gravel use
- Can be converted into tubeless system thanks to 2-Way-Fit Ready technology
- Axial Fixing System™ to fix the disc rotor to the hub (Center Lock compatible)
- The inner width of 23mm makes it possible to mount tyres up to 46mm
Product features
- Use: Gravel
- Model: Rapid Red 5
- Wheel size: 28″ (700C)
- Rim height: 24mm
- Rim width: 28mm
- Inner width: 23mm
- Rim type: Clincher
- Tubeless system: Yes, convertible
- Recommended tyre width: 32-46mm
- Brake Type: Disc Brake
- Disc brake standard: AFS (Center-Lock) Disc
- Over Locknut front: 12 x 100mm thru axle (with conversion kit for 15 x 100mm thru axle)
- Over Locknut rear: 12 x 142mm thru axle
- Bearings: Sealed cartridge bearings
- Spokes: front 24 / rear 24
- ASTM Category: 2
- Weight limit: 120kg (rider, bike, equipment and luggage)
Freehub compatibility (choose variant)
- Shimano HG 8/9/10/11-speed and Sram
- Sram XDR
Material
- Rim: Aluminum
- Front Hub: Aluminum, Aluminum flanges
- Rear Hub: Aluminum, Aluminum flanges
- Spokes: Aluminum
- Nipples: Aluminium
Color
- black
Weight
- 1760g pair (manufacturer information)
Scope of delivery
- 1 Fulcrum Rapid Red 5 DB 28″ Disc Wheelset
- 1 Conversion kit for 15 x 100mm thru axle
Please note that thru axles are not included
Technologies
AFS-AXLE SYSTEM™
The Axial Fixing System™ is the solution developed by Fulcrum® to fix the disc brake to the hub. The constraint granted by the butt area of the release mechanism, greater than in familiar standard ones, makes it possible to obtain greater structural rigidity and therefore more precise and powerful braking.
2-WAY FIT™ Ready
The wheelset can be converted into a tubeless system. The conversion is only permitted for certain types of tyres. For more information, visit the Fulcrum website.
