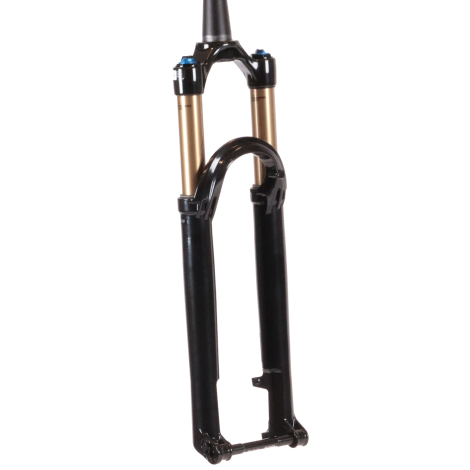

The Fox 34 K Float 29″ Factory StepCast with Kashima Coat and 3Pos-Adjust (Open/Medium/Firm) FIT4-damper is a lightweight fork with 120mm travel – designed for All Mountain, Trail, Cross-Country und Marathon riders.

Name: FOX 34 SC29 F-S120 3P-ADJ FIT4 15X110 1.5T 44MM BLUE
Brand: Fox
SKU: 12980
Availability: OutOfStock

Super Lightweight Race Fork: the 34 K FLOAT 29″ Factoryn3P-ADJ FIT4 15X110 1.5T 44MM

Creating a new generation of race forks, the 34 Step-Cast shines in the BC Bike Race, Epic Rides, and marathon trail conditions. It’s also perfect for riders who want an all-round fork that performs in a vast range of applications: lightweight for climbs and highly capable for demanding terrain with enough travel to instill confidence when the trail gets rough. Weight savings are attributed to external lower casting steps, hollow lower section, and shortened shaft lengths – the same lightweight 8mm damper shaft as the 32 Step-Cast. The dedicated air spring and damper tune are specific for this travel range, with a lighter tune at mid and higher velocities.

“Factory” says it all. The best-of-the-best technology we have to offer is available in our Factory Series models with our buttery smooth, and ultra durable Genuine Kashima Coat. These products are World Cup proven.External steps in lower casting reduce weight.

Features – Fox Racing 34 K FLOAT 29″ Factory StepCast FIT4 3POS ADJUST

Model – 2022 Factory Series 34 FLOAT 29 FIT4 3POS ADJ
External steps in lower casting reduce weight
FLOAT EVOL air spring adds plushness
New FIT4 3-position damper for improved control
Remote lockout for increased efficiency
Factory Series models feature Genuine Kashima Coat
Revised fork decors

Product features

Use: All Mountain, Trail, Cross-Country
Wheel size: 29″
Spring: Air
Damping: FIT4 3-Position with Adjust
Adjustments: Rebound, spring hardness over air pressure, FIT4 3-position compression (Open/Medium/Firm) with Adjust
Steerer: Tapered 1.5″ to 1 1/8″
Steerer length: 264mm
Upper Tubes: 34mm Step-Cast
Disc brake mount: Post Mount (PM6 – Direct Mount 160mm)
Maximum Rotor Size: 203mm
Drop out: 15x110mm Boost Thru Axle
Max. tire dimension: 29 x 2.6″
Axle to Crown: 527mm

Travel / Offest / Drop out

120mm / 44 Offset / boost

Material

Steerer: Aluminum
Crown: Aluminum
Lowers: Magnesium
Upper Tubes: Aluminum (Kashima Coat)

Color

Blue Black

Weight

1496g (manufacturer information)

Technologies

FIT4
A reconfigured shim stack found in all 34 and 36 FIT4 forks provides more sensitivity while maintaining support during aggressive riding. In its fourth generation, our patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

Kashima Coat

Buttery-smooth, Genuine Kashima Coat’s distinctive gold color is backed by its high performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.

FLOAT Airspring

The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to our FLOAT rear shocks, the new FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

EVOL

A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

Air Volume Spacers

The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

Kabolt (Boost)

The development of this super light, bolted 15x110mm thru axle has been inspired by Geoff Kabush through the Fox RAD program. Assembly is done with just a simple 6mm hex key.

Front Hub Axle System	15 x 110mm
Discipline	MTB
