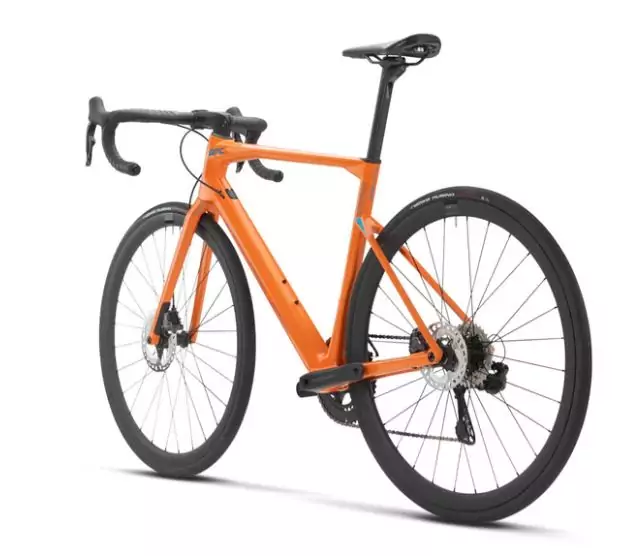

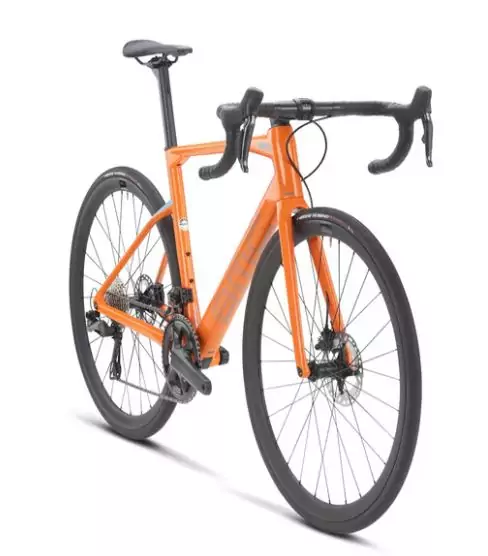

The Roadmachine’s frame and fork are constructed in our Premium Carbon with all the benefits of the built-in TCC Endurance technology. Internal cable routing gives a clean aesthetic to this road bike, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. This model has an ICS1 stem, compact aluminium bars, and Shimano’s latest Ultegra Di2 12-speed compact groupset, with CRD-321 Carbon tubeless-ready wheels and 28mm tires for comfort and traction.
Technology
Tuned Compliance Concept (TCC) Endurance
The most capable version of our TCC technology: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.
Integrated Cockpit System (ICS)
The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place: out of sight.
D Shaped Seat Post
The new D-Shape compliance post’s carbon layup was designed using TCC Endurance technology for tailored comfort.
Integrated Seat Clamp
The seamless and functional integrated seatpost clamp is hidden within the frame.
Frameset
Frame:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Roadmachine Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC ICS1 | Integrated Cockpit System Technology
Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend
Seat
Seatpost:
Roadmachine Premium Carbon D-Shaped Seatpost
Saddle:
Fizik Taiga
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO RT-MT800
Rotor Size (F/R):
160 / 140mm
Wheels
Rims:
CRD-321 Carbon | Tubeless Ready | 35mm
Hubs (F/R):
CRD-321
Tires:
Vittoria Rubino | 28mm
Additional Information
Tire Clearance:
33mm
ASTM Classification:
Level 2
System Weight Limit:
110kg
Geometry:
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 374 | 382 | 386 | 390 | 394 | 398 |
| Stack | 516 | 541 | 562 | 586 | 610 | 644 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 71 | 71 | 71 | 71 | 71 | 71 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 375 | 375 | 375 | 375 | 375 | 375 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 583 | 599 | 597 | 609 | 621 | 635 |
| Head Tube | 112 | 139 | 156 | 181 | 206 | 242 |
| Head Tube Angle | 71.2 | 71.2 | 72 | 72 | 72 | 72 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| Seat Tube | 420 | 457 | 500 | 522 | 539 | 573 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 430 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 719 | 750 | 782 | 805 | 825 | 859 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 522 | 532 | 546 | 556 | 568 | 583 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 982 | 999 | 997 | 1008 | 1020 | 1035 |
