Or as low as Fox Float DPS Factory Shock
Premium Carbon Frame
BMC Autodrop Integrated Dropper Seatpost

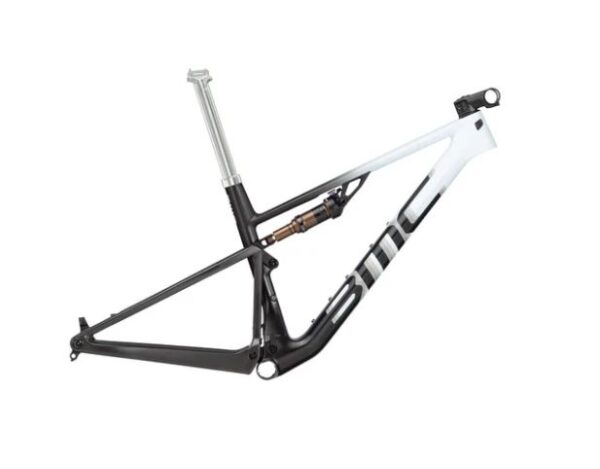

Fourstroke 01 is an XCO performance bike that exceeds the demands of the world’s top racers. On a mission to set the pace with our unique Autodrop technology and unrivalled APS dual-link suspension with 100mm of front and rear travel, it bests the competition in a Premium Carbon frame. This revolutionized racing machine arrives with integrated protection and is designed around the progressive BWC geometry, now accommodating two water bottles in the front triangle for long-distance missions. Fourstroke 01 FRS VAR1 is your go-to XCO frameset and arrives with Fox Float DPS Factory shock and the BMC Autodrop integrated dropper seatpost.
Frameset
Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle
Suspension
Rear Suspension:
Fox Float DPS Factory | Kashima Coating
Cockpit
Stem:
BMC MSM 01
Seat
Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop
Additional Information
Tire Clearance:
62mm
ASTM Classification:
Level 3
System Weight Limit:
110kg
Geometry:
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <172 | 172-182 | 180-188 | >188 |
| Reach | 437 | 457 | 477 | 500 |
| Stack | 584 | 592 | 600 | 615 |
| Bar Rise | 4 | 4 | 4 | 4 |
| Bar Sweep | 8 | 8 | 8 | 8 |
| Bar Width | 760 | 760 | 760 | 760 |
| BB Drop | 53 | 53 | 53 | 53 |
| Crank Length | 170 | 170 | 175 | 175 |
| Fork Length | 513 | 513 | 513 | 513 |
| Fork Rake | 44 | 44 | 44 | 44 |
| Front Center | 714 | 738 | 762 | 791 |
| Head Tube | 83.84 | 93.5 | 101.25 | 117.58 |
| Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 |
| Rear Center | 432 | 432 | 432 | 432 |
| Seat Angle | 76.7 | 76.7 | 76.7 | 76.7 |
| Seat Tube | 420 | 440 | 470 | 510 |
| Seatpost Drop | 80 | 80 | 80 | 80 |
| Standover Height | 725 | 725 | 725 | 725 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Stem Length | 50 | 60 | 60 | 70 |
| Top Tube | 574 | 597 | 621.2 | 649.23 |
| Trail | 113 | 113 | 113 | 113 |
| Wheelbase | 1139 | 1171 | 1188 | 1218 |
