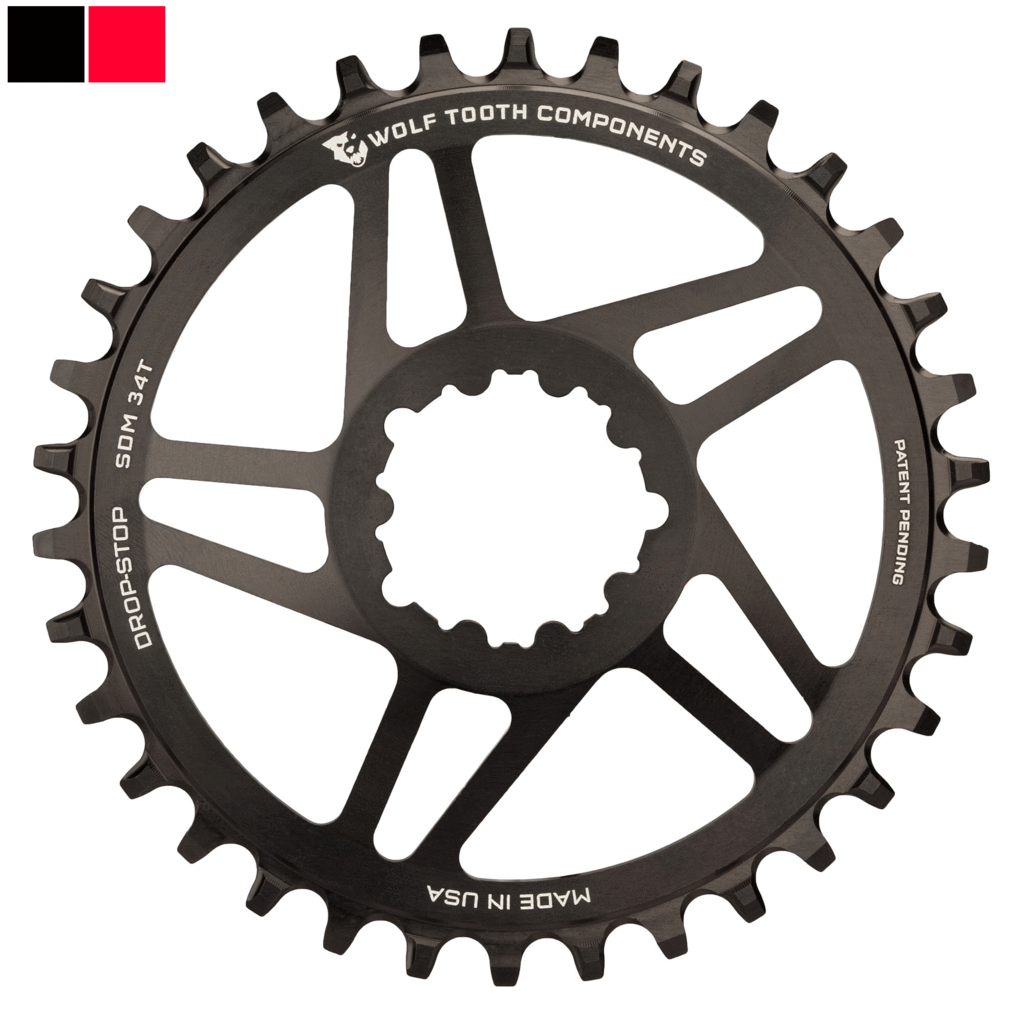

Wolftooth Chainring Set GXP Direct Mount for SRAM Cranks

Compatibility:

• • These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle.  You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring.

• • • Standard: 49mm chainline, 6mm offset for GXP and long spindle BB30. Note: all road cranks use this offset.

Tech Specs:

• • Design and manufactured in the Minneapolis, MN USA

• • Wolf Tooth’s patented Drop-Stop®  wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

• • • Recommend the use of a clutch style rear derailleur for the best chain security.

• • Material 7075-T6

• • Colors – black

• • Chainline: 49mm for standard and BB30 cranks, 52mm for Boost offset cranks.

• • A T25 Torx wrench is required to remove the bolts that secure the the chainring or spider to the crankarm.

• • • An L-wrench works best since the crank spindle may contact a socket adapter and prevent it from engaging properly.

• • • Use the same 3 bolts to attach the Wolf Tooth ring or if you need, we carry replacement bolts.


• • Weight – 26t – 52g, 28t – 59g, 30t – 65g, 32t – 70g, 34t – 75g, 36t – 81g, 38t – 90g, 40t – 106g, 42t – 111g
