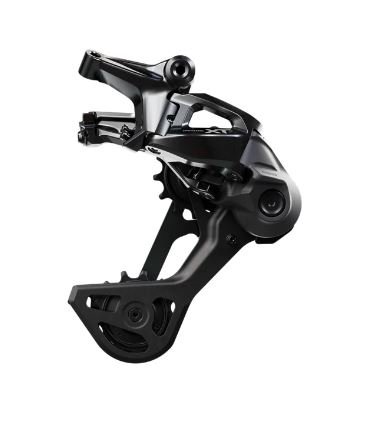

Shimano XT RD-M8200 12-speed Rear Derailleur
Legendary performance further developed – with modern robustness, smoother shifting and a consistently rider-orientated design. SHIMANO continues its tradition in the mechanical mountain bike sector and introduces the new components of the DEORE XT M8200 series. They offer advanced performance, proven reliability and modern trail technologies for those who expect more on every ride.
Robust, intuitive and mechanical: Shimano’s XT RD-M8200 12-speed rear derailleur
Building on decades of proven reliability on the trail, the new mechanical DEORE XT rear derailleur and the new shifter offer optimised ergonomics and improved shifting performance. In this way, SHIMANO brings top-level innovations to one of the most trusted component families in mountain biking.
Designed for tough conditions – the new DEORE XT M8200 drivetrain features a completely redesigned rear derailleur with SHIMANO SHADOW ES technology. It has been specifically designed for high durability and impact protection. The lightweight and compact design offers additional ground clearance whilst enabling a wide gear range.
Features – Shimano XT RD-M8200 12-speed rear derailleur | HYPERGLIDE+
- Optimised mechanical shifting performance: Precise, cable-actuated shifting with shorter lever travel and improved ergonomics for maximum control
- Low-profile design: SHIMANO SHADOW ES technology utilises a wedge-shaped construction that reduces the front surface area of the rear derailleur and minimises potential contact points with stones and roots
- Particularly robust construction: A wide, sturdily supported pivot and solid derailleur pulleys reduce the ingress of dirt and increase durability
- New chain stabilisation: The redesigned double-spring system generates higher chain tension, thereby improving chain guidance and chain retention
- SHIMANO SHADOW ES technology
- Fast and precise shifting under load
- Robust construction with a slim chain stabiliser
- Lightweight and compact GS version with additional ground clearance
- Robust derailleur pulley construction
- Aluminium cage
- RD-M8200 SGS (long cage) for 12-speed cassettes with 10–51 teeth
Product features
- Application: MTB
- Groupset: XT M8200
- Model: RD-M8200
- Mounting: Direct mount (conventional)
- Technology: Shadow ES
- Gear range:
- SGS type 1×12-speed (10-51 cassette)
- Compatible chain: 12-speed HG
- Max. teeth on large sprocket: 51 teeth (SGS)
- Min. teeth on large sprocket: 51 teeth (SGS)
- Max. teeth on small sprocket: 10 teeth (SGS)
- Min. small sprocket teeth: 10 teeth (SGS)
Cage length
- Type SGS long
Material
- Aluminium
- Stainless steel
- Steel
- PA-GF
