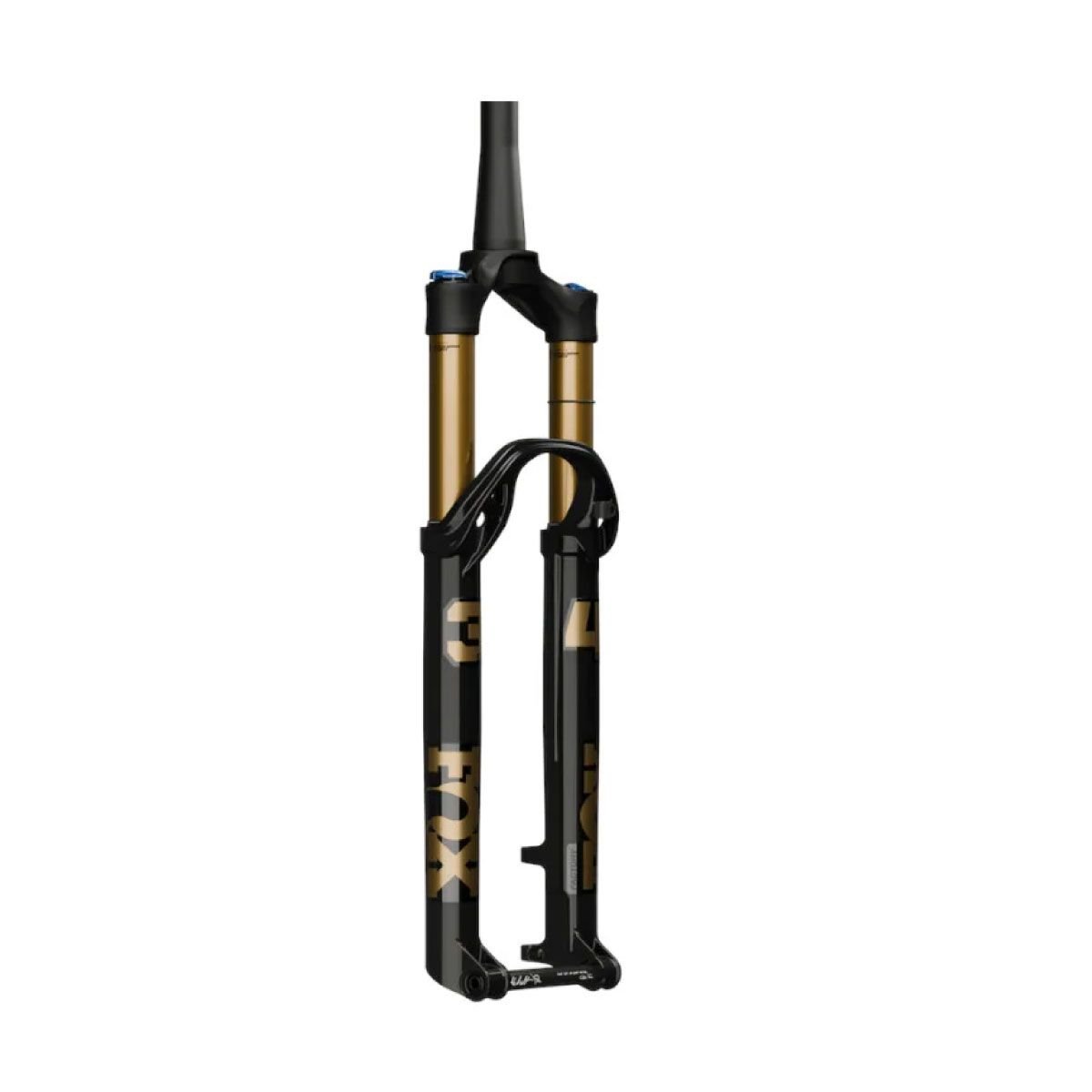

Fox Racing Shox 34 SL K Float 29″ Factory 120 Grip SL Remote Tapered Kabolt Boost

The 34 SL from Fox Racing brings never-before-seen XC capability into a full-width 34 chassis with up to 130mm of travel. Built for the most technical World Cup XC courses and demanding Downcountry riding, 34 SL adds more stiffness, more suppleness and minimal weight gain from the 34 Step-Cast fork.The GRIP SL is an incredibly light, short travel-specific damper that not only saves weight, but provides an unparalleled ride feel in its class. Riders experience a supple stroke with an optimized pedal-to-bump efficiency, as well as a smooth blowoff force in lockout mode to reduce rider fatigue.

Features – Fox Racing 34 SL K Float 29″ Factory Grip SL Remote Tapered Kabolt Boost

• FLOAT EVOL air spring adds plushness
• SL version offers more stiffness and only a minimal weight increase compared to the 34 Step-Cast
• Lightweight GRIP-SL damper cartridge with 3-position adjust and blow-off valve
• Factory Series models feature Genuine Kashima Coat
• New arch shape offers improved head tube clearance with shorter rakes
• New air/oil channels

Product features

• Use: Cross-Country
• Wheel size: 29″
• Spring: Air
• Travel: 120 mm
• Damping: GripSL
• Adjustments: Rebound, spring hardness over air pressure, GripSL 3-position compression, Remote (Open/Medium/Firm)
• Adjustments GripSL damper:
  • Low-speed compression: 3 clicks (Open/Medium/Firm)
  • Low-speed rebound: 17 clicks
• Steerer: Tapered 1.5″ to 1 1/8″
• Steerer length: 265 mm
• Upper Tubes: 34 mm
• Disc brake mount: Post Mount (PM6 – Direct Mount 160 mm)
• Maximum Rotor Size: 180 mm
• Drop out: Boost 15×110 mm Kabolt Thru-Axle
• Offset: 44 mm

Material

• Steerer: Aluminum
• Crown: Aluminum
• Lowers: Magnesium
• Upper Tubes: Aluminum (Kashima Coat)

Color (choose variant)

• shiny black kashima
• shiny orange black

Weight

• approx. 1510 g

Technologies

GRIP-SL
In the world of endurance racing, every gram counts. With the Grip SL, Fox has created a short travel-specific damper that not only reduced weight but could keep up with increasingly demanding World Cup XCO and XCM races. Lockout performance is paramount on the Grip SL; firm for hammering pedals during a sprint while maintaining a smooth blowoff force when you hit a bump with lockout engaged. This reduces fatigue and conserves rider energy. When the compression adjuster is in Middle or Open mode, riders experience a supple stroke in the early stages of the travel with an optimized pedal-to-bump efficiency

Kashima Coat
Buttery-smooth, Genuine Kashima Coat’s distinctive gold color is backed by its high performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.

FLOAT Airspring
The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to our FLOAT rear shocks, the new FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

EVOL
A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

Air Volume Spacers
The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
